High-performance Charmhigh TM08 SMT pick and place machine, full automatic SMT production line
8 heads, 80-feeder stacks. PCBA manufacturing
Introduction
Charmhigh TM08 model adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use. Its optimal mounting speed is 35000CPH. Very suitable for full-automatic PCB assembly line.
TM08 highlight:
1. Support CPK detection, (XY)±0.05mm; CPK≥1.0
2. Automatic nozzle change (31 sets nozzle library)
3. Automatic thermal compensation correction system
4. Automatic conveying
5. Double Y axis
6. Optimal speed: 35000CPH
1. Model number: TM08
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 8 Heads 80 feeders + CPK detection passed + Panasonic servo motor + double Y axis + automatic nozzle changer + 11 cameras + THK Grinding screw + Thermal Compensation + Optimal speed: 35000CPH
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 600mm(L) * 350mm(W) / 1200 *350mm (option)
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC
8. Dimension: 1280 (L) * 1580 (W) * 1500 (H) mm, AC220V (50hz, single phase)
9. Lead time: 3-5 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh TM08 catalog download from: TM08 - Catalog.pdf
Charmhigh TM08 parameters:
| Dimensions | 1280mm(L)x1580mm(W)x1500mm(H) |
| Weight | 1450kg |
| Power Supply | AC220V (50Hz, single phase), 3.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 8 |
| Mounting Speed | 35000cph (optimal) |
| Mounting Accuracy | ±0.05mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)x350mm(W) (standard);
1200mm(L)x350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system)
equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting ground screw and mute linear guide
(Y axis with double screws) |
| Feeding System | 80 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Fly camerax8 (component size applicable: 16mmx16mm);
IC camerax1 (component size applicable: 36mmx36mm);
Mark camerax2 |
Charmhigh TM08, 8-head 80-feeder:

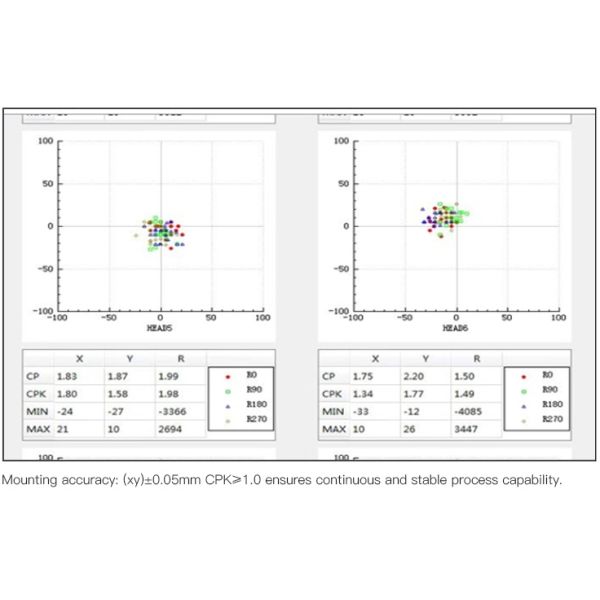

Charmhigh TM08: CPK detection passed, TM08: CPK≥1.0, high precision model:
What is CPK detection?
CPK refers to the process capability index, it is a measure of how consistent and accurate a pick-and-place machine is in its production, If the CPK is high, it means the machine is really good at placing components exactly where they need to be. But if the CPK is low, it might mean the machine is not so good at it, and there could be more mistakes in the assembly process. It tells us how stable the machine's quality is during manufacturing. Here is the relationship:
CPK < 1: Poor
1 ≤ CPK < 1.33: normal
CPK ≥ 1.33: excellent
Summarize: CPK is a measure of how consistent and accurate a pick-and-place machine is in its production. Essentially, it tells us how stable the machine's quality is during manufacturing.

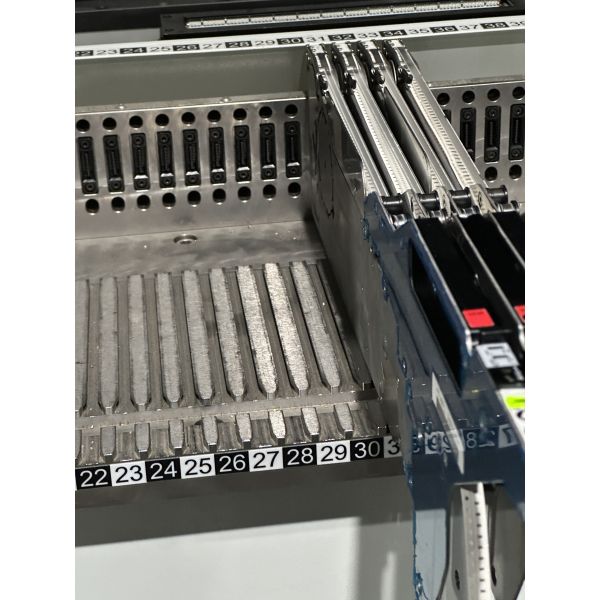

Work with NXT electric feeder, more stable, higher precision:

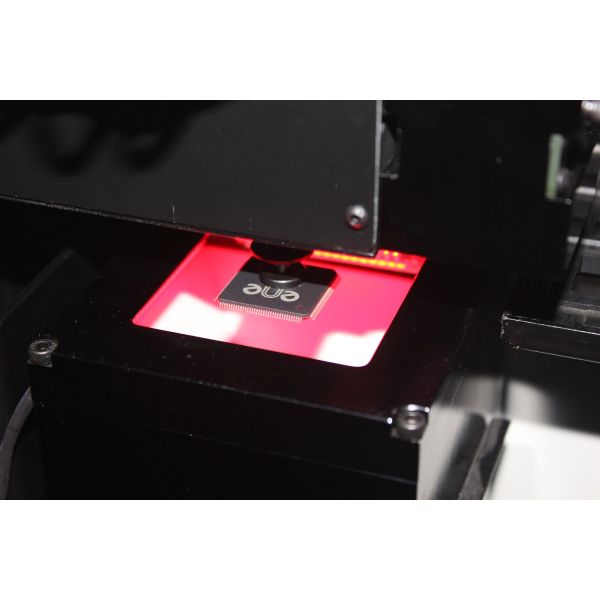

Max IC size 36x36mm, high resolution IC camera:
Flying camera 8pcs (16x16mm):

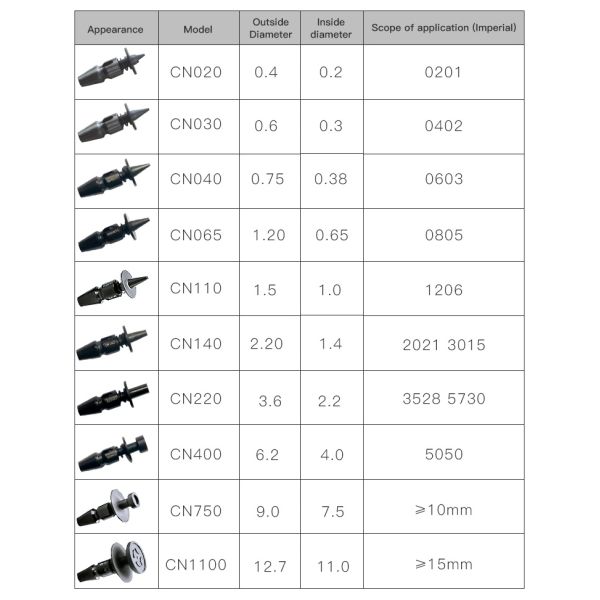

How to choose nozzles:
PCB samples:
Part list:
| Item | Quantity | Item | Quantity |
| TM08 Pick and place machine | 1 | Lubricating oil | 1 |
| Nozzles | 8 | Filter | 4 |
| Tool box | 1 | Quick connector | 1 |
| Warranty Card | 1 | Mouse Pad | 2 |
| User Manual | 1 | Power Cable | 2 |
| Test Report | 1 | Keyboard | 1 |
| Brush | 1 | Mouse Pad | 1 |
| Tweezer | 1 | LCD | 1
|

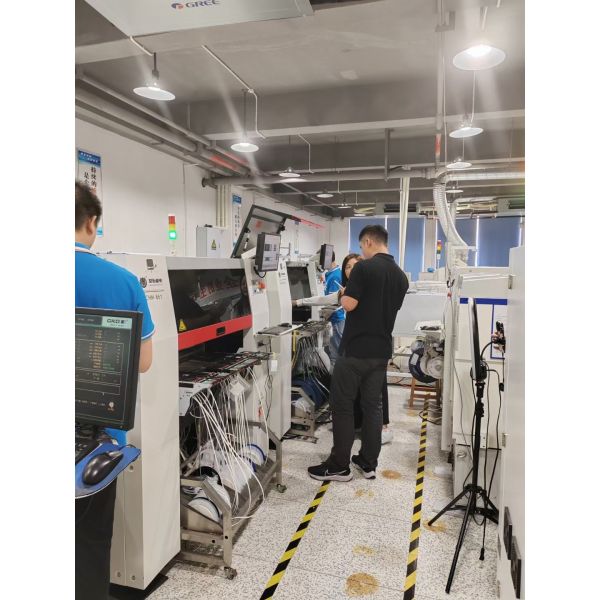

Charmhigh factory direct supply, we have our own production line:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.
