High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping

Model Number : CHM-551P

Operation system : Windows (comes with PC and keyboard mouse)

Supply Ability : 50 Per month

Max PCB size : 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)

Certification : CE

Fiducial calibration : Auto calibrate Mark point

Payment Terms : T/T,Western Union

Nozzle : Auto nozzle changer with 13pcs nozzle library

Price : $9000

Dimension : 1050mm(L)x1050mm(W)x885mm(H)

MOQ : 1

Delivery Time : 2-5 days

Component height : 12mm

Net weight : 200kg

Place of Origin : China

Mounting Accuracy : (XY) ±0.06mm CPK≥1.0

Packaging Details : wooden box

Mounting speed : 11500CPH(optimal); IPC9850:8850cph

Brand Name : Charmhigh

Feeder : 50pcs Yamaha Feeders (pneumatic & electric feeder)

Contact Now

High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping
Product Overview

The CHM-551P is a next-generation 4-head SMT pick and place machine engineered for high-precision SMT assembly in electronics manufacturing and R&D applications. Built with a heavy-duty cast-iron frame, this industrial-grade machine delivers superior structural stability, reduced vibration, and significantly improved placement accuracy and speed.

Key Features
  • Support CPK test
  • Automatic nozzle change (13 sets nozzle library)
  • Thermal Compensation
  • Automatic conveying
  • Optimal speed: 14,400 CPH
  • Cast-iron construction
Applications
  • Small-to-medium batch PCB assembly
  • LED strip and bulb manufacturing
  • Electronics contract manufacturing (EMS)
  • R&D prototyping
  • Educational institutions
  • Growing SMT production lines
Technical Specifications
Dimensions 1020mm(L) x 1180mm(W) x 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14,400 CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2
Machine Overview
High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping
Feeder Compatibility

Works with universal standard Yamaha pneumatic feeders & electric feeders (purchased separately):

  • 8mm/12mm/16mm/24mm/32mm/44mm electric feeder
  • 8x4mm/12mm/16mm/24mm/32mm/44mm pneumatic feeder
  • Vibration feeder
High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping
Customer Installation
High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping

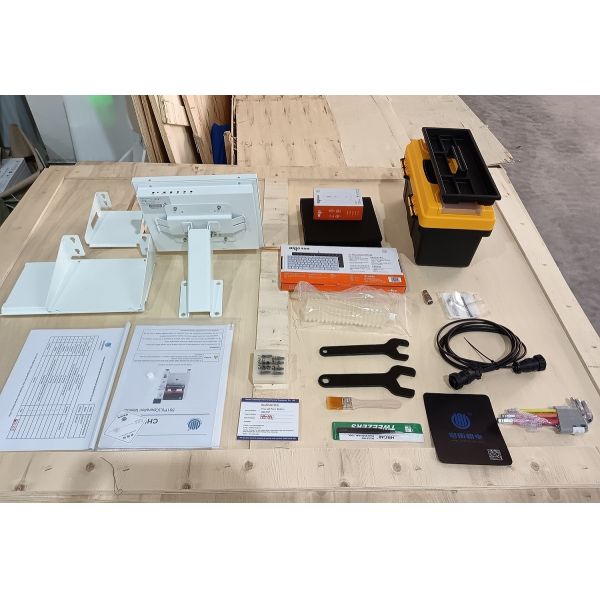

Parts List
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1
High-end 4-head Pick and Place Machine CHM-551P Precision Prototyping
Why Choose the Upgraded CHM-551P?

With its cast-iron construction, vertical space-saving design, and enhanced accuracy, the CHM-551P offers industrial-grade SMT placement performance at a competitive price point. 2-4 day lead time with in-stock availability.

Important Notes

The pick and place machine is complete set with all accessories included in the package, machine ready to use!

The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).

Please purchase this machine with confidence.

Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Technical Support
Kimi's Mobile/WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com
YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail. We will respond to you at the first time.
